Author Topic: Front end Alignment  (Read 3420 times)

Offline JJSZABO

  • Senior Member
  • ****
  • Posts: 1009
Front end Alignment
« on: September 25, 2008, 07:20:11 pm »

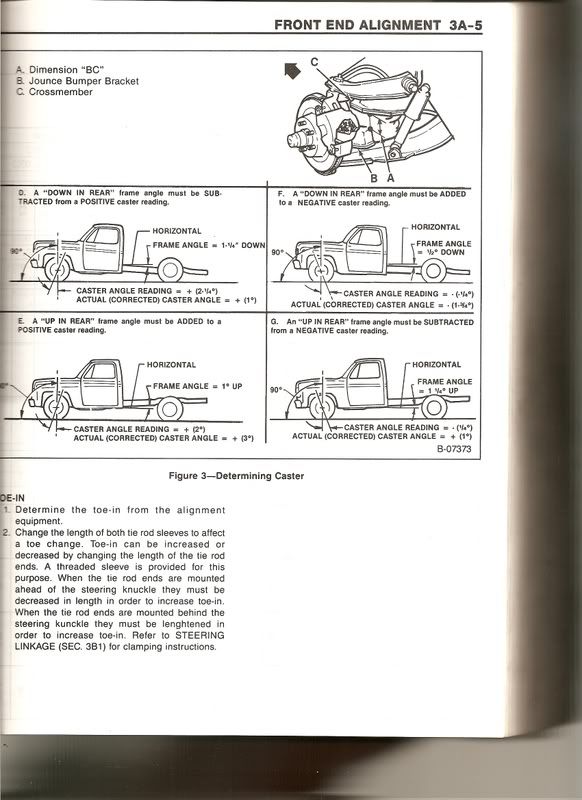

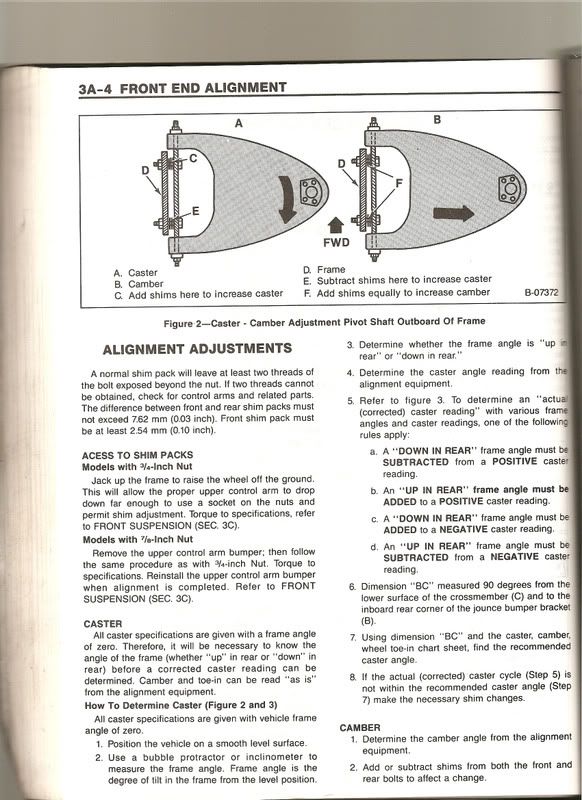

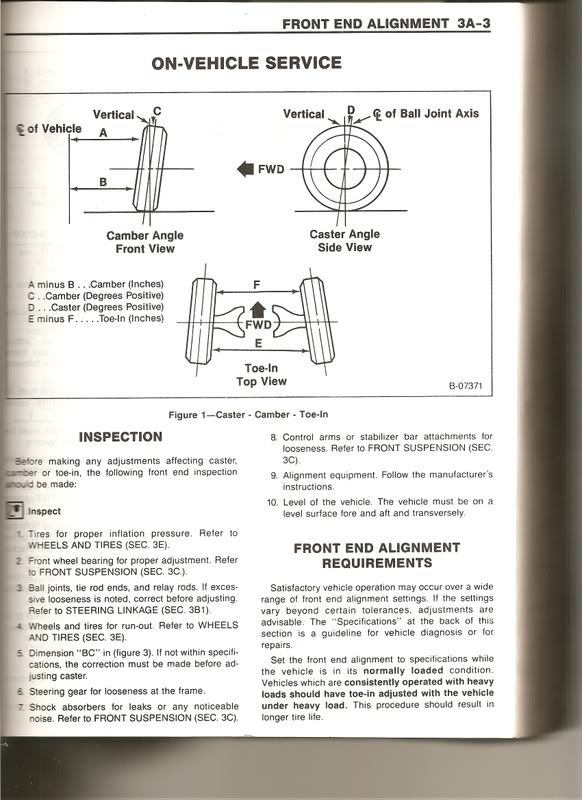

I needed to adjust my front end (so my front tires are pointed forward) after I rebuilt it and wondered how to fix my toe in.  I found it.  Not only did I fix my toe in but I straightened (centered) the steering wheel.  Here is the information I used - if you were ever interested in how front end alignments were done here it is







Now I can drive it to a tire shop to have the alignment done by a professional.

Jeff

86 Chevy C-10
350, TH400
Ex father and son project (son lost interest)

Son regained interest when truck was almost completed
