Looking for pics or articles for routing the brake + fuel lines on 4wd 3/4 ton
« on: February 01, 2009, 10:53:10 am »
I know what your thinking.. He didnt take pics. I did, but not enough. Especially around the proportioning valve and the motor mount plates. I want to make sure I don't interfere with my headers and shock mounts etc. I'm running the fuel and brake lines together because I have a fuel cell setup. I tried using the pics from 73-87.com but his truck is a 2wd and is a little different.
Logged

Offline 4x4orbust

  • Frequent Member
  • **
  • Posts: 342
Re: Looking for pics or articles for routing the brake + fuel lines on 4wd 3/4 ton
« Reply #1 on: February 01, 2009, 01:29:29 pm »

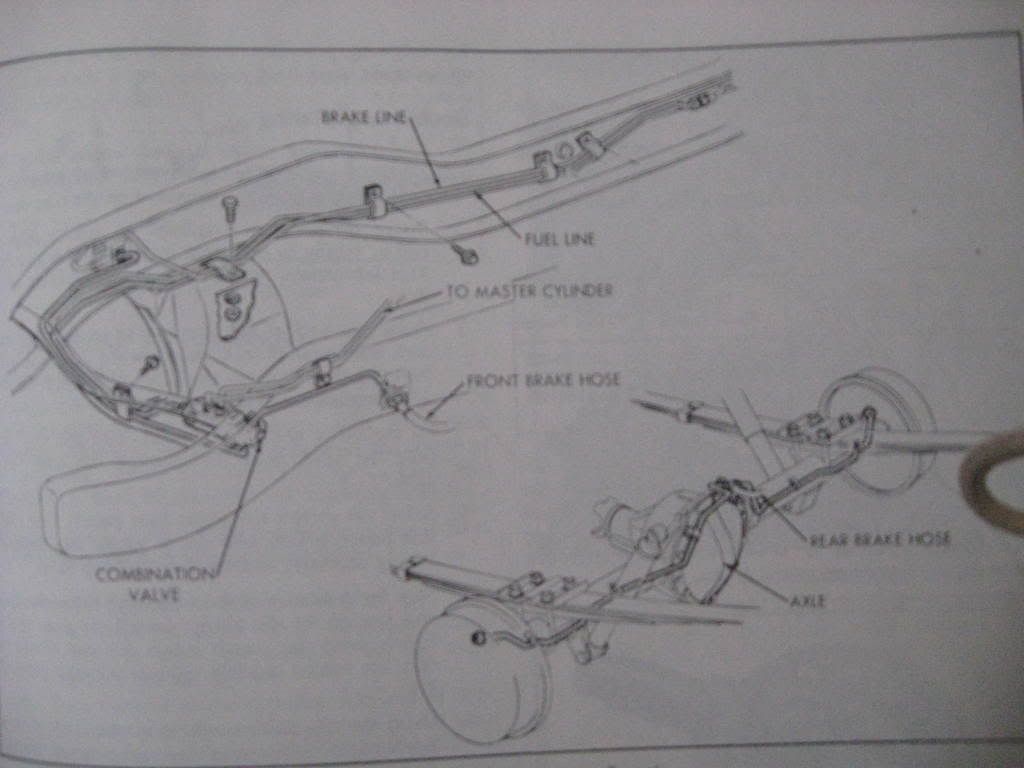

might not be the best, but my scanner doesn't work, from a gm service manual (1973)



you can zoom in this:
http://s301.photobucket.com/albums/nn77/prfakaharry/1973%20gmc%202500/
Logged
1982 chevy K-10 SWB, 355 th350/np208. 2.5"lift, 33" swampers, headers/duals,  current project

Offline 82gmc3/4ton

  • Newbie
  • Posts: 59
Re: Looking for pics or articles for routing the brake + fuel lines on 4wd 3/4 ton
« Reply #2 on: February 01, 2009, 01:58:52 pm »
Thank you very much. Perfect angle too.
