Author Topic: brake booster  (Read 5118 times)

Offline cwilson jr

  • Registered Users
  • *
  • Posts: 197
brake booster
« on: April 23, 2009, 01:06:43 pm »
while looking over something for bleeding the brakes, i see there are two different boosters on these trucks and didn't really see how to determine which you have.  there was a regular, i assume and a "hydro-booster".  i have an 85 with power brakes.
Logged

Offline Captkaos

  • OWNER and Administrator
  • Administrator
  • Senior Member
  • *****
  • Posts: 18462
    • http://www.73-87chevytrucks.com
Re: brake booster
« Reply #1 on: April 23, 2009, 03:22:07 pm »
there is a regular and dual diaphram (HD version)
Hydroboost has no booster.
We need a tech page on boosters :)
Logged

Offline eventhorizon66

  • Senior Member
  • ****
  • Posts: 1909
Re: brake booster
« Reply #2 on: April 23, 2009, 03:50:33 pm »

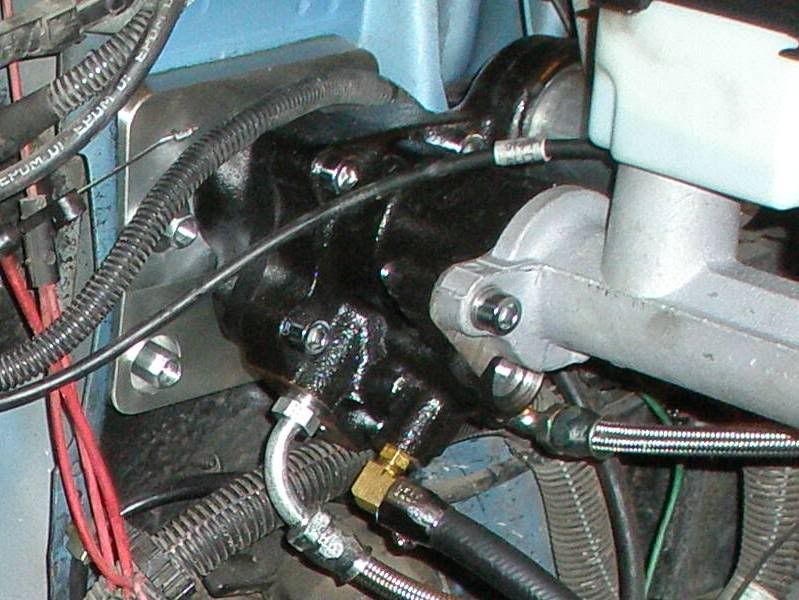

Hydroboost uses to the power steering pump to provide boost, if you had it there would be three lines (two high pressure, one return) running from the PS pump to your booster behind the master cylinder.  It looks nothing like a diaphram booster, which uses engine vacuum.  I am running an aftermarket hydroboost kit.  Here's a pic.

Logged
'85 C10 SWB 350 700R4 TKO600

Offline ITSANSS

  • Newbie
  • Posts: 88
Re: brake booster
« Reply #3 on: July 11, 2010, 01:57:22 pm »
So, to be clear, if you don't have hydroboost, you have the classic two lines coming from the power steering pump?

I went to buy a new power steering pump and reservoir the other day and they asked if I had hydroboost or not.  Had not a clue.  Haha
Logged

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19181
Re: brake booster
« Reply #4 on: July 11, 2010, 02:29:15 pm »
If you want I can do a tech description on brake boosters, master cylinders, and control valves.
Logged
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline ITSANSS

  • Newbie
  • Posts: 88
Re: brake booster
« Reply #5 on: July 11, 2010, 09:11:25 pm »
Quote from: VileZambonie on July 11, 2010, 02:29:15 pm
If you want I can do a tech description on brake boosters, master cylinders, and control valves.

You're more than welcome to.  I'm sure it would save people from threads like these.  lol However, I, like the original poster, just want to know how to tell whether I have power steering with hydroboost or not.   :P

Two lines = no hydroboost.
Three lines = hydroboost.

Right?

Thanks
Logged
