Power Door Lock Actuators
« on: April 21, 2009, 07:08:38 pm »
Folks
This one has me scratching my head.

I have figured the wiring from the door lock actuators, lock/unlock switches ,to the polarity reversing relay. Everything works as it should...when it's hot-wired.

However, my relay has no power and without a schematic (power locks are not shown on the schemas in the forum) its difficult to trace the source. It's a heavyish orange/black cable...

Anyone know where it is fed from?
Logged
Chevy lover
1985 Suburban K10 Silverado diesel

Offline Captkaos

  • OWNER and Administrator
  • Administrator
  • Senior Member
  • *****
  • Posts: 18454
    • http://www.73-87chevytrucks.com
Re: Power Door Lock Actuators
« Reply #1 on: April 21, 2009, 07:53:26 pm »
The power windows/locks have a separate harness the gets power from the fuse box, it is also grounded on the side of the cowl.
Logged

Offline AdrianR

  • Newbie
  • Posts: 33
  • Big Blue Beastie - '85 Suburban K10, 6.2 diesel
Re: Power Door Lock Actuators
« Reply #2 on: April 21, 2009, 08:00:17 pm »
Quote from: Captkaos on April 21, 2009, 07:53:26 pm
The power windows/locks have a separate harness the gets power from the fuse box, it is also grounded on the side of the cowl.

My fuse box doesn't seem to have a window/lock marking for a fuse...do you happen to have a fuse layout diagram, Captain? Your help is appreciated.
Logged
Chevy lover
1985 Suburban K10 Silverado diesel

Offline ccz145a

  • Senior Member
  • ****
  • Posts: 1393
Re: Power Door Lock Actuators
« Reply #3 on: April 22, 2009, 08:03:20 am »
I don't think it's fused at the panel, just getting it's power from the panel. This power then goes to the separate harness.
Logged
1975 C10 Silverado LWB, 454CID, TH400, 10bolt 3.42
11MPG Downhill w/tailwind (but there ain't no hills here)

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Power Door Lock Actuators
« Reply #4 on: April 22, 2009, 08:12:17 am »

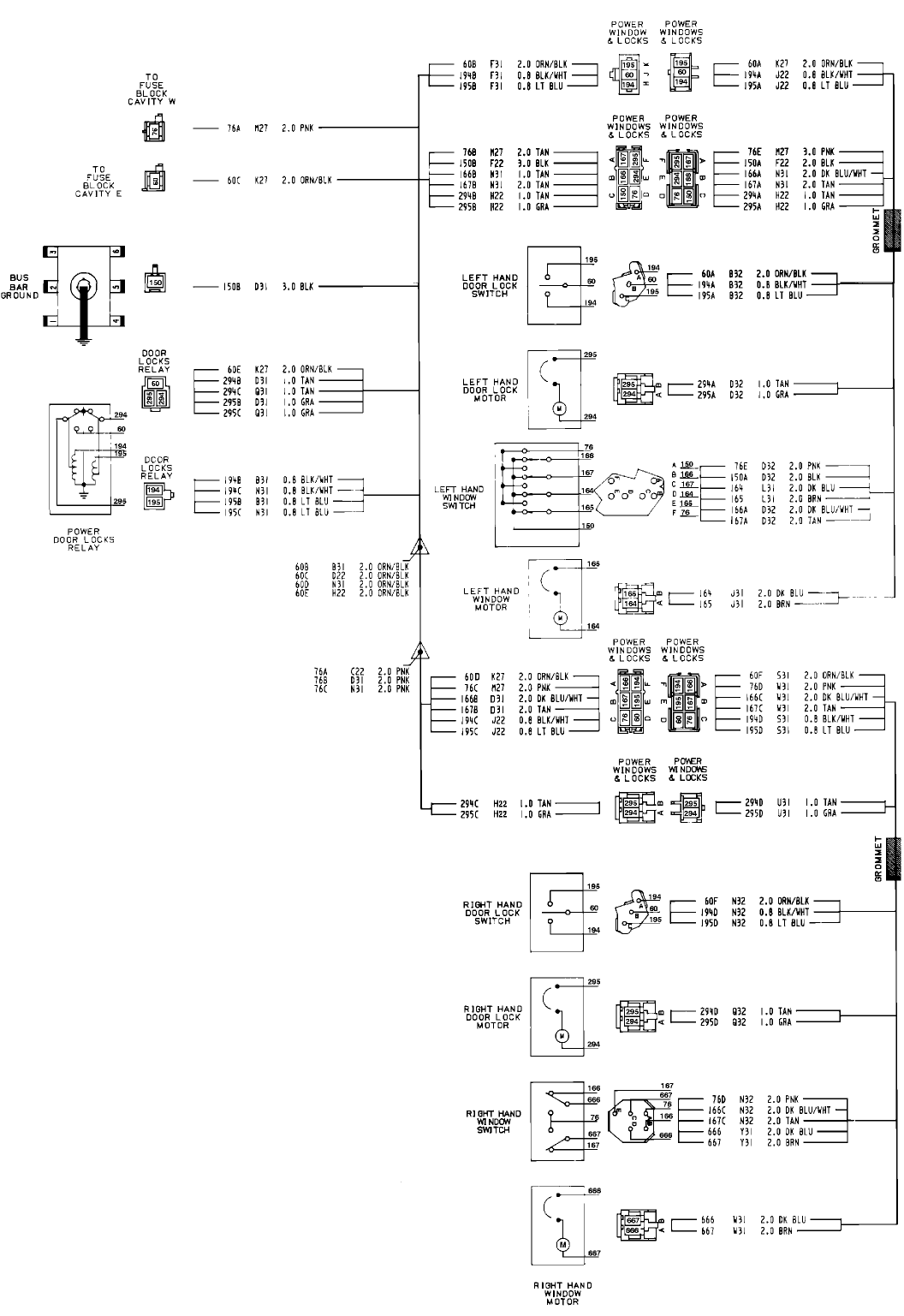

It should plug into fuse block cavity E but you didn't provide any info on your truck.



Click here to view full size
Logged
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline Captkaos

  • OWNER and Administrator
  • Administrator
  • Senior Member
  • *****
  • Posts: 18454
    • http://www.73-87chevytrucks.com
Re: Power Door Lock Actuators
« Reply #5 on: April 22, 2009, 11:10:12 am »
Vile, I copied this to the Wiring diagram post if that is ok.
Logged

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Power Door Lock Actuators
« Reply #6 on: April 22, 2009, 01:33:36 pm »
That's fine, just resize it.
Logged
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline Captkaos

  • OWNER and Administrator
  • Administrator
  • Senior Member
  • *****
  • Posts: 18454
    • http://www.73-87chevytrucks.com
Re: Power Door Lock Actuators
« Reply #7 on: April 22, 2009, 03:03:44 pm »
I used the original size.
Logged

Offline AdrianR

  • Newbie
  • Posts: 33
  • Big Blue Beastie - '85 Suburban K10, 6.2 diesel
Re: Power Door Lock Actuators
« Reply #8 on: April 22, 2009, 04:50:41 pm »
Thanks for the helps guys - three locks working, one bad actuator (driver side, rear), and I re-sited the polarity-reversal relay as it was in a total pig of a location.

Strangely enough, the window and lock circuits are on separate fuses. Looking at the fuse block, right side topmost fuse (which was unmarked and missing) was for the power locks.

Live and learn...

Logged
Chevy lover
1985 Suburban K10 Silverado diesel

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Power Door Lock Actuators
« Reply #9 on: April 22, 2009, 08:10:51 pm »
Is this a pickup, 4 door or suburban?
Logged
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline AdrianR

  • Newbie
  • Posts: 33
  • Big Blue Beastie - '85 Suburban K10, 6.2 diesel
Re: Power Door Lock Actuators
« Reply #10 on: April 23, 2009, 07:52:29 pm »
Quote from: VileZambonie on April 22, 2009, 08:10:51 pm
Is this a pickup, 4 door or suburban?

It's in my sig...

1985 Suburban K10 Silverado
Logged
Chevy lover
1985 Suburban K10 Silverado diesel
