Still no blower motor updated pics
« on: November 04, 2013, 08:18:52 am »
So its not working at all. So far i have done
-Replaced Relay
-Replaced and tested blower motor
-Checked Fuse
-Made Sure had power going into the HAC Control
I have power going into the relay but none coming out on the other side to that red wire that plugs into the blower. I am stumped. Maybe i got a faulty relay??

73 Chevy Factory Ac

Offline beastmode86

  • Newbie
  • Posts: 13
  • Newbie
Re: Blower Motor Heater
« Reply #1 on: November 05, 2013, 01:27:19 pm »
 You can check your relay with a multimeter.

Online bd

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 6592
Re: Blower Motor Heater
« Reply #2 on: November 05, 2013, 02:18:08 pm »
Do you measure power on the yellow wire at the blower resistor with the fan switch set to minimum?
Rich
It's difficult to know just how much you don't know until you know it.
In other words... if people learn by making mistakes, by now I should know just about everything!!!
87 R10 Silverado Fleetside 355 MPFI 700R4 3.42 Locker (aka Rusty, aka Mater)

Offline darmentle

  • Registered Users
  • *
  • Posts: 120
Re: Blower Motor Heater
« Reply #3 on: November 05, 2013, 04:14:49 pm »
No i havent measured anything with a multimeter yet i will try this week.

Online bd

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 6592
Re: Blower Motor Heater
« Reply #4 on: November 05, 2013, 04:53:53 pm »
A test light will work just as well.
Rich
It's difficult to know just how much you don't know until you know it.
In other words... if people learn by making mistakes, by now I should know just about everything!!!
87 R10 Silverado Fleetside 355 MPFI 700R4 3.42 Locker (aka Rusty, aka Mater)

Offline darmentle

  • Registered Users
  • *
  • Posts: 120

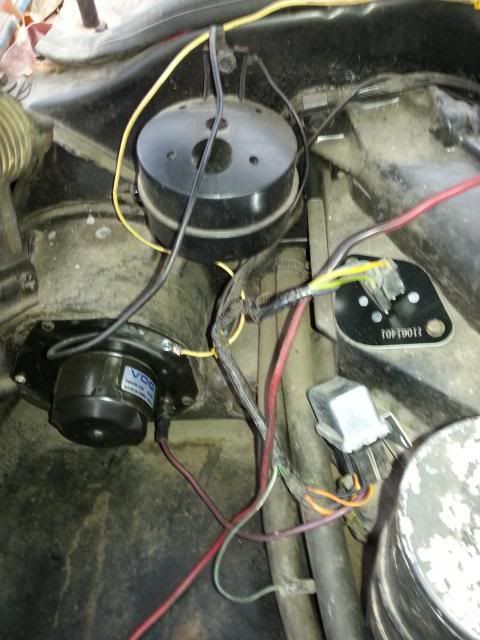

Still no blower motor updated pics
« Reply #5 on: December 01, 2013, 05:29:51 pm »
Still cant get the dang thing to work.
-Replaced blower relay
-Replaced blower
-Replaced blower resistor
-Cleaned wires and connections added a extra ground
-Getting 12 Volts to the resistor and 12 volts on both sides of the relay. just cant get power going to the red wire that goes to the blower motor.
Thoughts?
Worse case can i run the blower motor on a toggle switch ?



« Last Edit: December 02, 2013, 05:31:29 pm by darmentle »

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Still no blower motor
« Reply #6 on: December 01, 2013, 05:49:37 pm »
What are we working on here? Some details?
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline darmentle

  • Registered Users
  • *
  • Posts: 120
Re: Still no blower motor
« Reply #7 on: December 01, 2013, 06:37:01 pm »
Sorry 73 chevy factory ac

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Still no blower motor
« Reply #9 on: December 01, 2013, 07:20:50 pm »
Both orange wires with key on on high speed fan
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline darmentle

  • Registered Users
  • *
  • Posts: 120
Re: Still no blower motor
« Reply #10 on: December 01, 2013, 09:28:36 pm »
yes i have B+

Offline darmentle

  • Registered Users
  • *
  • Posts: 120
Re: Still no blower motor
« Reply #11 on: December 02, 2013, 08:05:29 am »
So what i noticed is there is a fuse that is suppose to be inline coming off the junction block . I will  check on that later today.

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Still no blower motor updated pics
« Reply #12 on: December 02, 2013, 06:48:12 pm »
I was just going to ask where your 30AMP inline glass fuse is?
,                           ___
                         /  _ _ _\_
              ⌠ŻŻŻŻŻ'   [☼===☼]
              `()_);-;()_)--o--)_)

74 GMC, 75 K5, 84 GMC, 85 K20, 86 k20, 79 K10

Offline darmentle

  • Registered Users
  • *
  • Posts: 120
Re: Still no blower motor updated pics
« Reply #13 on: December 02, 2013, 07:03:45 pm »
I was just going to ask where your 30AMP inline glass fuse is?

i don't see one the one wire coming off the junction box goes all the way to the battery. Also if i had that fusible link where does it plug into at? the blower relay ?

Offline VileZambonie

  • Global Moderator
  • Senior Member
  • *****
  • Posts: 19167
Re: Still no blower motor updated pics
« Reply #14 on: December 02, 2013, 07:32:31 pm »

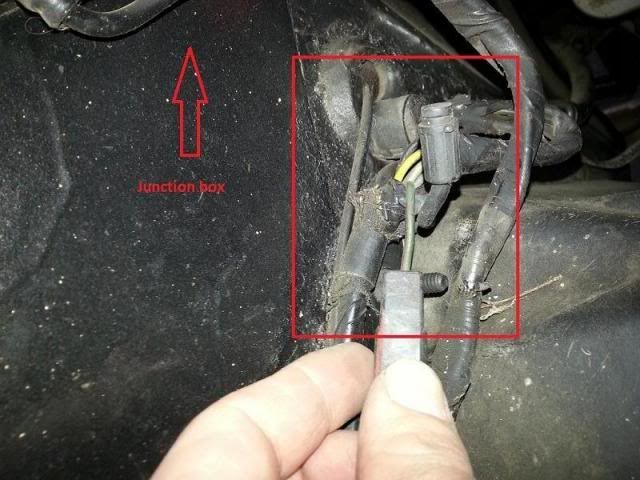

It's right above your thumb in the picture you posted
